Description

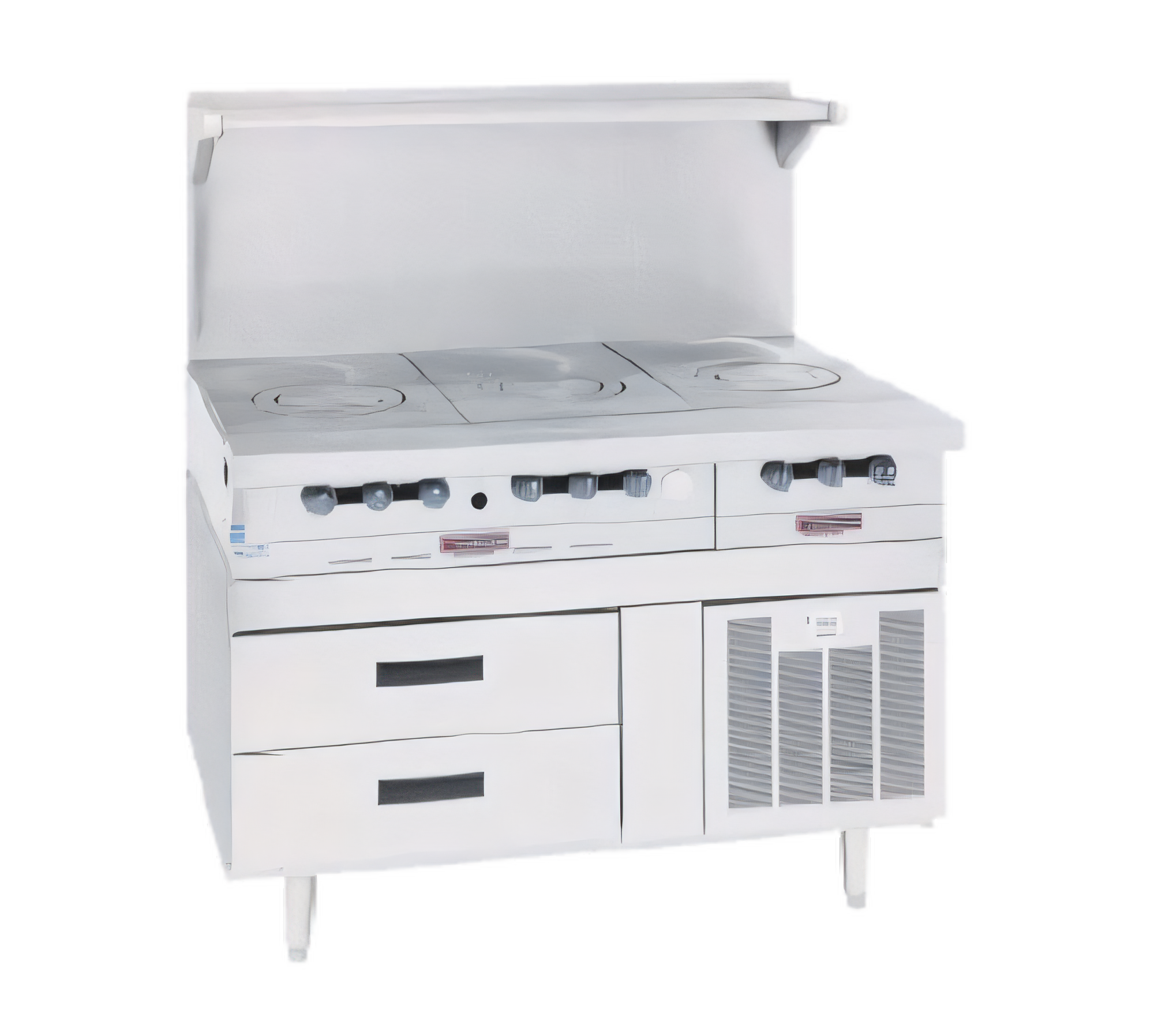

Garland GN17R97 Arctic Fire Undercounter & Worktop Refrigeration
Product Description
Effortlessly keep your ingredients chilled exactly where you need them with the Garland Arctic Fire GN17R97. This versatile unit combines the storage capacity of a reach-in refrigerator with the sturdy construction of a heavy-duty equipment stand, all while utilizing remote refrigeration to expel heat and compressor noise outside the kitchen. With its three sections and six self-closing drawers, this modular unit is designed to seamlessly integrate with Garland's Master Series countertops. For warranty details, please contact us.
Key advantages:
- The remote refrigeration system (using HFC-404A) keeps the work area cooler and quieter, with a 1/4 HP condenser and line set provided by others.
- Each drawer can hold up to (2) 12" × 20" × 4" hotel pans (GN 1/1, 100 mm), allowing storage for 12 full-size pans in total.
- The flush, center-mounted handles are out of the way of foot traffic and allow for quick two-handed pulls.
- The energy-saving Santoprene magnetic gaskets are tool-free to replace when needed.
- The low 27 in. (686 mm) working height matches the Garland Master Series modular cook tops, creating a seamless refrigerated equipment stand.
- The rugged, easy-to-clean construction includes a stainless steel exterior front and sides, stainless steel interior top, rear, and bottom, ABS interior liners, and a galvanized bottom and back.
- The 6 in. (152 mm) adjustable stainless steel legs simplify floor cleaning and leveling.
- The front-mounted analog thermometer allows for quick checks of the cabinet's temperature.
- The dedicated 6 in. service chase keeps electrical and refrigerant connections accessible from the front.
Features:
- You must order this base together with a Garland Master Series modular cook top. You cannot buy this base on its own.
- The remote compressor, plumbing, and electrical connections must be installed by others. The unit is shipped without a power cord or plug, so it needs to be hard-wired on site.
- Garland equipment is designed for commercial use only and is not approved for residential use.
Product Specs
| Specification | Value |
|---|---|
| Model | GN17R97 |
| Unit type | Remote refrigerated equipment base (refrigerator, not freezer) |
| Overall width | 97 in. / 2 464 mm |
| Depth | 34 in. / 864 mm |
| Height (to work surface) | 27 in. / 686 mm |
| Sections / Drawers | 3 sections / 6 self-closing drawers |
| Pan capacity | Up to 12 × GN 1/1 (12" × 20" × 4") hotel pans |
| Refrigerant | HFC-404A (remote system) |
| Recommended compressor | 1/4 HP, 852 BTU (field supplied) |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A – hard-wire connection (no cord/plug) |
| Legs | 4 × 6 in. adjustable stainless steel |
| Certifications | UL, cUL, NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | Arctic Fire |
| Height | 27.0in |
| Width | 97" - 108" wide |
| Depth | 34.0in |
| Shipping Weight | 637.0lbs |
| Exterior Finish | all stainless steel exterior |
| Drawer Qty | 6 drawers |
| Refrigeration | remote (refrigeration not included) |
| Specifications | Arctic Fire Refrigerator Base, remote refrigeration, 97" W, three-section, (6) self-closing drawers with center pull handles, stainless steel exterior, 6" stainless steel legs (available only when ordered with Master Series modular cook tops) 115v/60/1-ph, 1.5 amps (Garland) |
