Description

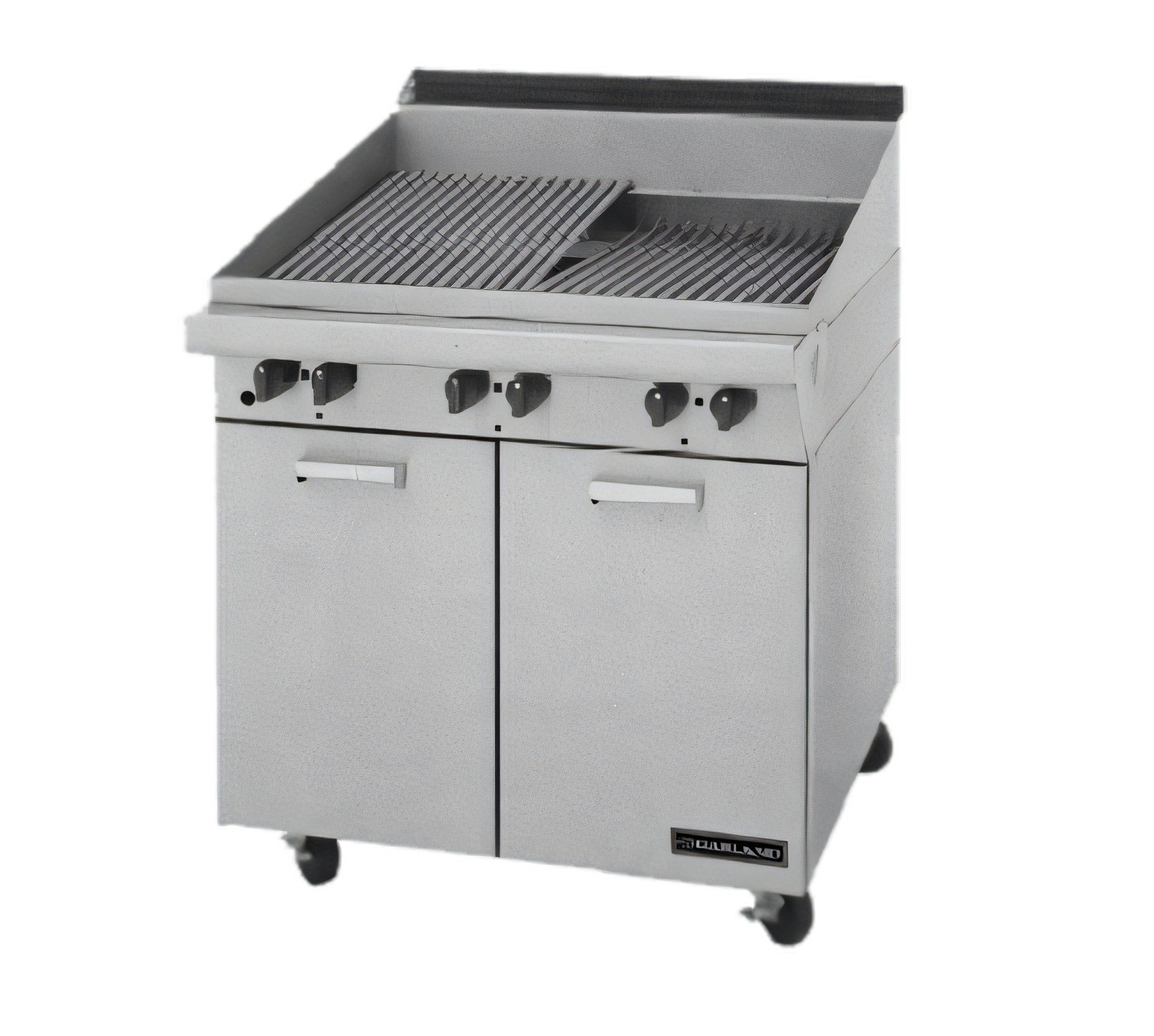

Garland M24BT Master Gas Ranges
Product Description
Model M24BT | Range-Match Heavy-Duty Briquette Broiler
The 24" Garland M24BT is designed to seamlessly integrate with any Master Series base, providing a powerful and versatile cooking solution. Equipped with four individually-controlled 15,000 BTU burners, a full bed of long-lasting ceramic briquettes, and flat-or-tilt steel grates, this broiler delivers the perfect combination of sear marks, smoky flavor, and reliable performance. Whether you're cooking rare filet or roasting vegetables, the M24BT's compact and modular design allows you to maximize valuable kitchen space without compromising on quality or functionality.
Features:
- Total input of 60,000 BTU (4 × 15,000 BTU) for rapid recovery and consistent cooking performance.
- Piezo spark ignition with constant-burning pilots for fast, reliable start-ups.
- Flat or tilt, dual-sided steel grates (diamond pattern and ½" rounded bar) that adapt to different cooking needs.
- Heavy-weight ceramic briquettes distribute heat evenly and add authentic char-grilled flavor.
- Full-width, easy-pull grease drawer keeps the cooking surface clean during peak usage.
- 1 ¼" NPT front gas manifold that aligns with other Master Series equipment for a seamless cookline.
- Rugged stainless-steel front, sides, and rail that can withstand daily commercial use and clean up easily.
- Requires zero clearance to non-combustible surfaces, making it ideal for tight urban kitchens.
- Convertible to Natural or Propane gas (must be specified when ordering).
- Certified for safety and sanitation: CSA Flame, CSA Star, and NSF listed.
Features:
- The backguard is made of stainless steel and comes in 3 different heights: 10 inches, 17 inches, or 33 inches.
- The rear gas connection kit includes a ¾" NPT connection, a shut-off valve, and a regulator.
- The grate rack is made of diamond-edge steel, which provides extra-fine branding.
- The unit has polyurethane swivel casters with front brakes when installed on a storage base.
- End caps and covers are available for seamless battery installations.
Product Specs
| Specification | Value |
|---|---|
| Model | M24BT – Modular Top Charbroiler |
| Total Input | 60 000 BTU / 17.6 kW |
| Burners | 4 × 15 000 BTU cast-iron, Hi-Lo valves |
| Heat Medium | Ceramic briquettes (included) |
| Grates | Dual-sided steel, adjustable flat or 3-position tilt |
| Gas Connection | 1 ¼" NPT front manifold (rear connection optional) |
| Operating Pressure | Natural 6" WC / Propane 10" WC |
| Dimensions (W × D) | 24" (610 mm) × 38" (965 mm) |
| Working Height* | 14 ½" (368 mm) from base to grate |
| Shipping Weight | ≈ 230 lb / 105 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | Master |
| Certifications | NSF, CSA Star, CSA Flame |
| Height | 24.0in |
| Width | 24.0in |
| Depth | 38.0in |
| Shipping Weight | 230.0lbs |
| Base | modular |
| Exterior Finish | stainless steel front & sides |
| Top | (1) charbroiler |
| Specifications | Master Series Heavy Duty Range, gas, 24", modular, charbroiler, briquettes, flat/tilt steel grates, spark ignition, stainless steel front and sides, 60,000 BTU, CSA Flame, CSA Star, NSF (Garland) |
