Description

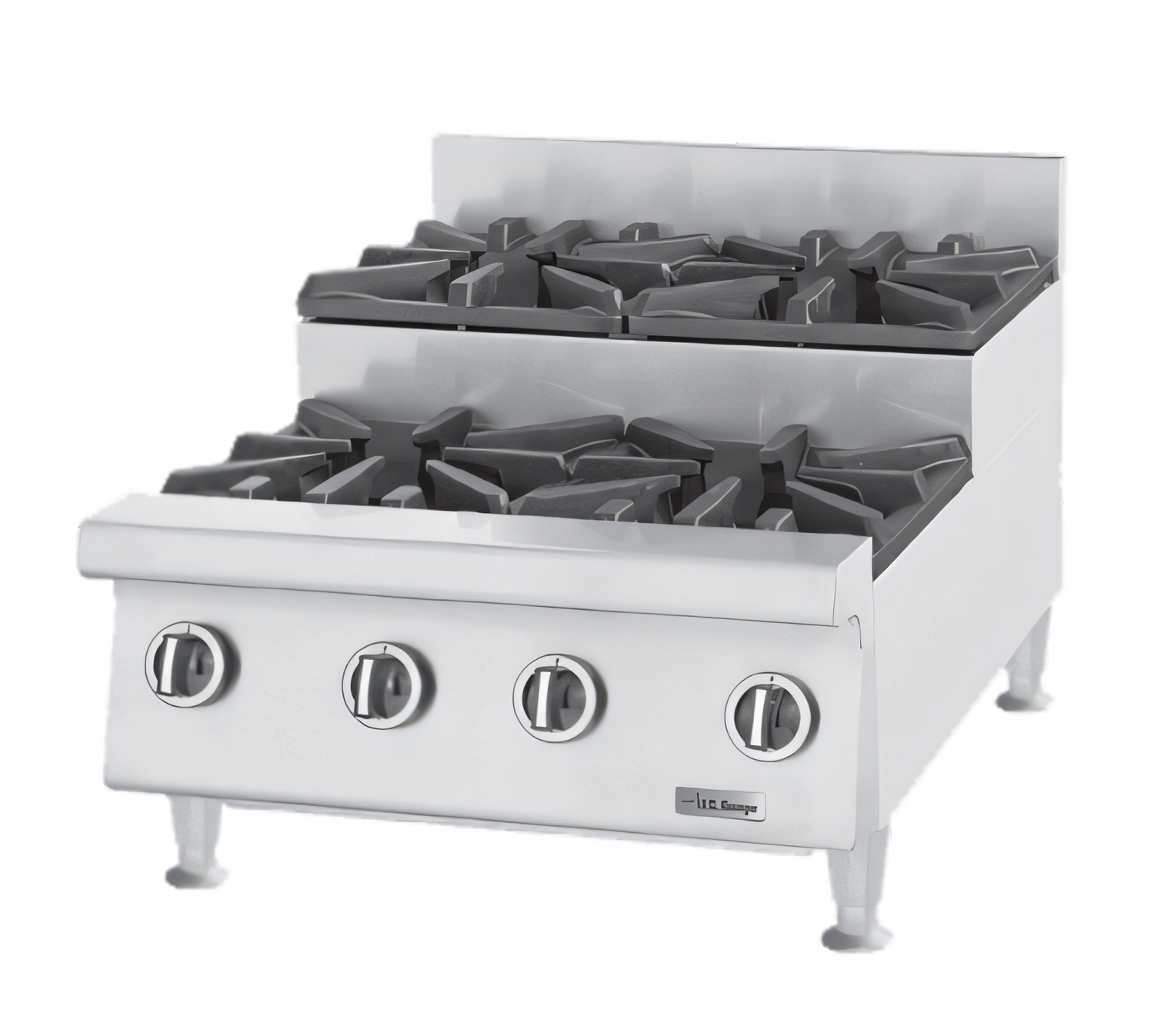

Garland UTOG24-SU4 US Range UT Counter Hot Plates
Product Description
The Garland U.S. Range UTOG24-SU4 packs a powerful punch in a compact 24-inch countertop design. With four open burners delivering a total of 120,000 BTUs, this rugged stainless steel range is perfect for high-volume cooking tasks like sautéing, boiling, and pan-frying in food trucks, ghost kitchens, and busy restaurants. Featuring two front burners and two elevated step-up burners, this versatile cooktop is built to handle the demands of any commercial kitchen. When ordering, be sure to specify the desired altitude and gas type for optimal performance.
Key Features:
- Four 30,000 BTU Performer Pro two-piece octagonal burners, providing a total of 120,000 BTU
- Rear burners are stepped up, giving kitchen staff a clear view and easy access to pans
- Individual, infinitely-adjustable manual valves with standing pilots for precise heat control
- Split, ergonomic cast-iron grates that protect the pilots and can be removed quickly for cleaning
- Rugged stainless steel construction for the front, sides, back, and a 4-inch deep front rail (3.5-inch work surface)
- Extra-large stainless steel crumb tray that slides out for easy and fast clean-ups
- 4-inch stainless steel adjustable legs to level the unit on any countertop
- ¾-inch NPT regulator with a "T" manifold, allowing for either a straight-through or flush-rear gas connection
- Field convertible for use with either Natural Gas (standard) or Propane (LP) operation
- Certified for commercial kitchens by CSA and NSF
Popular Options & Accessories:
- A stainless steel counter-skirt that reduces the height by 1-¾ inches.
- A stainless steel equipment stand with shelves and adjustable feet.
- A stand with a solid top and locking casters.
- A removable condiment rail with 1/9- or 1/3-pan cut-outs (pans sold separately).
Product Specs
| Specification | Value |
|---|---|
| Model / SKU | UTOG24-SU4 |
| Burner Configuration | (2) front open burners(2) rear step-up burners |
| Per-Burner Output | 30,000 BTU (Natural Gas)26,000 BTU (Propane) |
| Total Input | 120,000 BTU NG / 104,000 BTU LP |
| Gas Connection | ¾" NPT (regulator included) |
| Dimensions (W × D × H) | 23-5/8" × 32" × 19-13/16"(600 mm × 814 mm × 503 mm) |
| Work-Height Reduction | -1 ¾" with optional counter-skirt kit |
| Clearances to Combustibles | Sides 7" (178 mm)Rear 6" (152 mm) |
| Certifications | CSA, NSF |
| Shipping Weight | 135 lb / 61 kg |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | US Range UT Counter |
| Certifications | NSF, CSA |
| Height | 19.81in |
| Width | 23.63in |
| Depth | 32.0in |
| Shipping Weight | 135.0lbs |
| Burner Qty | (2) open burners, (2) step-up open burners |
| Width (side - side) | 24 - 35" |
| Top and Front Finish | stainless steel |
| Legs | with legs |
| Specifications | Step-Up Hotplate, gas, 24", countertop, (2) 30,000 BTU open burners, (2) 30,000 BTU step-up open burners, manual controls, pilot lights, stainless steel front, sides and back, 3-1/2" front rail, 4" high adjustable legs, 120,000 BTU (US Range), CSA, NSF |
