Description

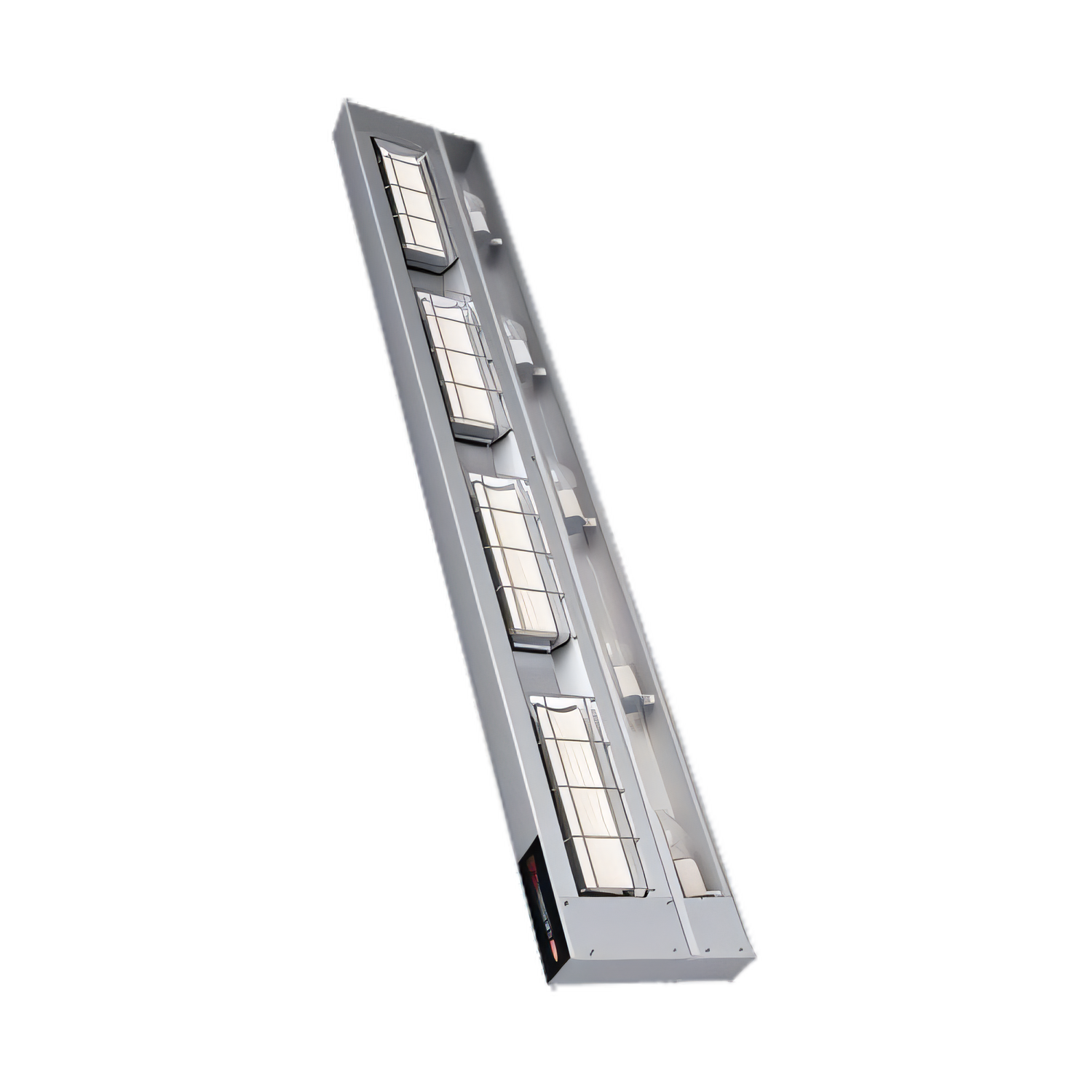

Hatco UGAL-66D6 Ultra-Glo® Heat Lamps
Product Description
Model UGAL-66D | Includes 6" spacer & remote or attached controls
Give every plate the just-made appeal guests love. Hatco's Ultra-Glo® dual ceramic strip delivers an even, intense blanket of infrared heat across the entire 66" holding zone—while built-in shatter-resistant bulbs spotlight your food for irresistible presentation. Electrical ratings vary by factory-wired voltage. Always verify the specification label and consult a qualified electrician for proper installation.
Why you'll love it:
- The dual ceramic elements boost the holding power, making it suitable for wider buffet, pass-through, or plating lines.
- The elevated 6" (152 mm) spacer provides a typical 22" (559 mm) working clearance, which is perfect for fast plating.
- The adjustable angle brackets allow you to fine-tune the heat focus in seconds.
- The pre-focused "edge hot" pattern compensates for rim heat loss, keeping every portion hot and safe.
- The shatter-resistant incandescent lamps (included) add a product-enhancing glow and safety.
- You can choose between attached toggle/infinite controls or a remotely-mounted control enclosure.
- The rugged, one-piece extruded aluminum housing prevents sagging, even at a 66" span.
- It is NSF & UL listed, made in the USA, and backed by 24/7 parts and service support from Hatco.
Perfect for:
- Buffet or carving stations where you need to keep food warm and easily accessible.
- Quick-serve and fast-casual restaurants with pass-through shelves that require food to be held at the right temperature.
- Back-of-house plating lines in commercial kitchens.
- Convenience stores and coffee bars that need to maintain extended hold times for hot food items.
Customize it:
- Choose a remote control enclosure in colors that match or contrast with your design.
- Add LED chef lights with a warm (3000 K) or cool (4000 K) color temperature.
- Use non-adjustable tubular stands that range from 18 to 26 inches in height for portable setups.
- Opt for extended power leads up to 20 feet (6096 mm) in length.
Product Specs
| Specification | Value |
|---|---|
| Overall width | 66" (1676 mm) |
| Heat source | Dual ceramic infrared tiles |
| Wattage (heat) | ≈ 4 000 W total (2 × 2 000 W elements) |
| Lighting | (2) shatter-resistant incandescent display bulbs, toggle-switched |
| Voltage options* | 120/208 V, 120/240 V, 208 V or 240 V, 1-phase, dual-circuit |
| Amps @ 240 V* | ≈ 16.6 A (heat) + 0.8 A (lights) |
| Mounting height | 22" (559 mm) above holding surface when using supplied 6" spacer |
| Housing finish | Clear anodized aluminum (Designer Color & Gloss finishes available) |
| Included hardware | Adjustable angle mounting brackets, 3' (914 mm) conduit whip |
| Certifications | NSF ✅ UL ✅ |
| Country of origin | Made in USA |
| Warranty | 1 yr parts & labor on unit | 1 yr replacement on ceramic elements |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hatco |
| Brand Name | Ultra-Glo® |
| Certifications | NSF, UL, Made in USA |
| Height | 3.8in |
| Width | 66.0in |
| Depth | 22.0in |
| Shipping Weight | 51.0lbs |
| Finish | aluminum |
| Type | lighted |
| Size | double |
| Length | 61 - 66" |
| Type of element | ceramic heating |
| Specifications | Ultra-Glo® Infrared Foodwarmer, 66" W, standard wattage, with lights, double ceramic tile with aluminum housing, 6" spacer, with remote or attached control box, adjustable angle brackets, NSF, UL, Made in USA |
