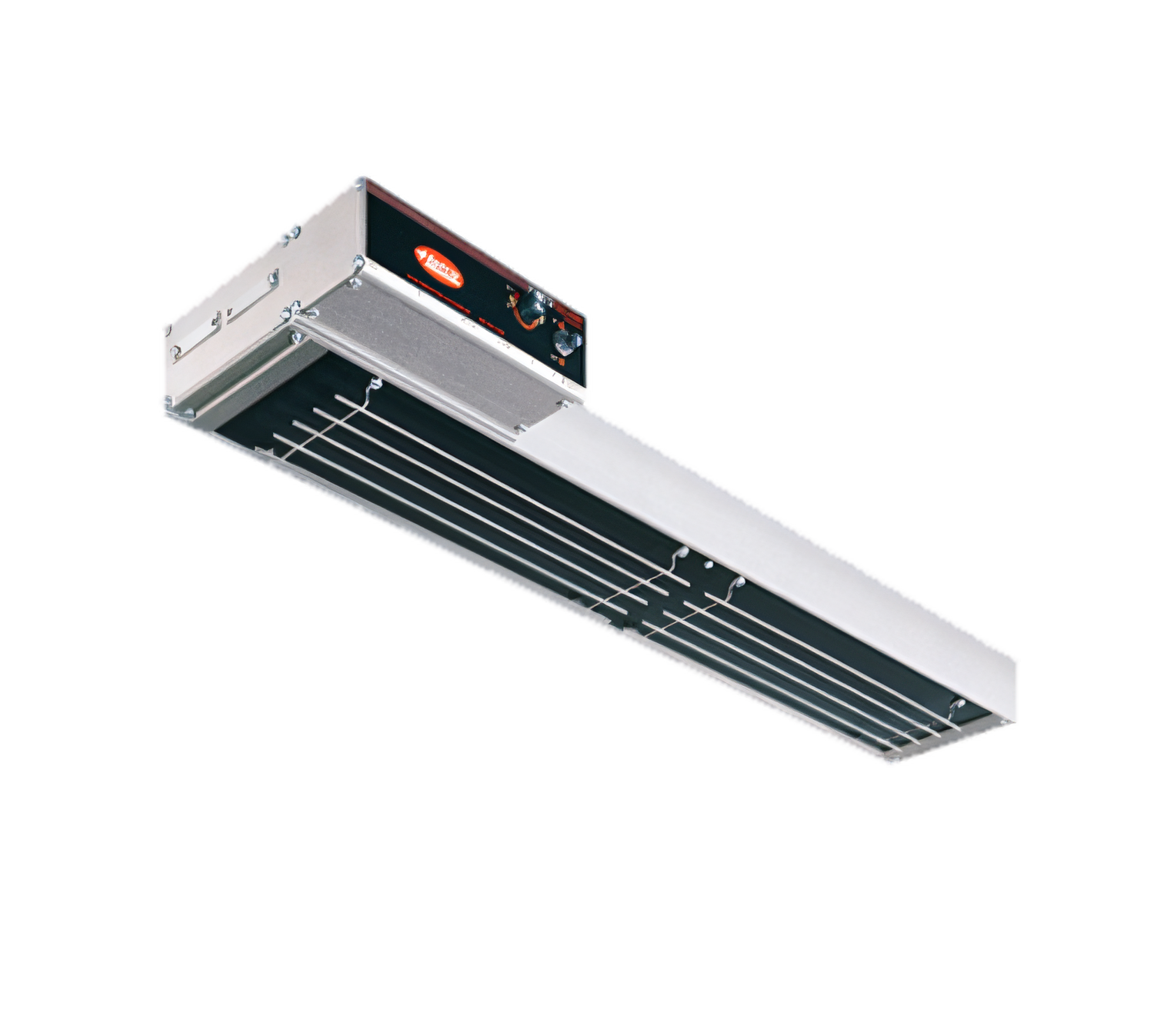

Hatco GRAIHL-72D3 Glo-Ray® Heat Lamps

Product Description

Model GRAIHL-72D | NSF, CE & cULus Listed | Made in USA Give every pan on your buffet line the perfect holding temperature and show-stopping presentation. Hatco's flagship 72 inch Glo-Ray® dual Infra-Black heater delivers a smooth curtain of infrared heat that locks in serving-ready warmth while six built-in display lights draw guests' eyes to the food.

Why You'll Love It:

  • The dual Infra-Black emitters evenly distribute heat across the food, ensuring uniform heating without any hot or cold spots.
  • The high-watt design (up to 3,810 W) keeps even the largest pans at safe serving temperatures, even in high-volume operations.
  • The six shielded 60 W display bulbs (included) enhance the colors and textures of the food, boosting impulse sales.
  • The durable extruded aluminum housing is built to last, with no sagging even at 72-inch spans, and stays cool to the touch thanks to heavy insulation.
  • The standard 3-inch (76 mm) element spacing balances heat intensity with countertop clearance, and an optional 6-inch spacer is available.
  • The separate remote control enclosure (sold separately) allows you to mount the controls, such as toggle, infinite, or thermostatic, in a convenient and safe location outside the heat zone.
  • The factory-installed mounting channel is compatible with Hatco angle brackets, tubular stands, or chain suspension kits, making installation quick and easy.
  • A wide range of designer powder-coat and gloss finishes are available to match your décor (clear anodized aluminum is the standard).
  • The product meets NSF/ANSI 4 sanitation standards and bears CE & cULus safety markings.

Ideal Applications:

  • Restaurants with full-service or quick-service drive-through windows
  • Catering businesses and event venues with banquet halls
  • Grocery stores with hot food displays
  • Convenience stores with ready-to-eat grab-and-go items

Product Specs

Specification Value
Overall Width 72" / 1,829 mm
Depth × Height 15" × 2.6" (381 mm × 66 mm) with 3" spacer
Heat Output 3,810 W @ 240 V | 3,750 W @ 220 V | 3,420 W @ 208 V
Current Draw 15.9 A @ 240 V | 17.0 A @ 220 V | 17.5 A @ 208 V (single-phase)
Display Lighting 6 × 60 W clear incandescent flood bulbs (standard) Halogen & LED upgrades available
Construction Continuous extruded aluminum housing, metal-sheathed elements, heavy insulation
Controls Remote toggle, infinite or thermostatic box (required, ordered separately)
Certifications NSF, CE, cULus
Origin Manufactured in Milwaukee, Wisconsin USA

Features

Specification Value
Manufacturer Hatco
Brand Name Glo-Ray®
Certifications NSF, cULus, Made in USA
Height 2.5in
Width 72.0in
Depth 15.0in
Shipping Weight 45.0lbs
Finish aluminum
Size double
Type lighted
Length 67 - 72"
Type of element black panel heating system
Specifications Glo-Ray® Infrablack Strip Heater, 72" W, high wattage with lights, metal sheathed heating element, double heater housing 3" spacing, aluminum construction, 3810 watts, NSF, CE, cULus, Made in USA

Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
