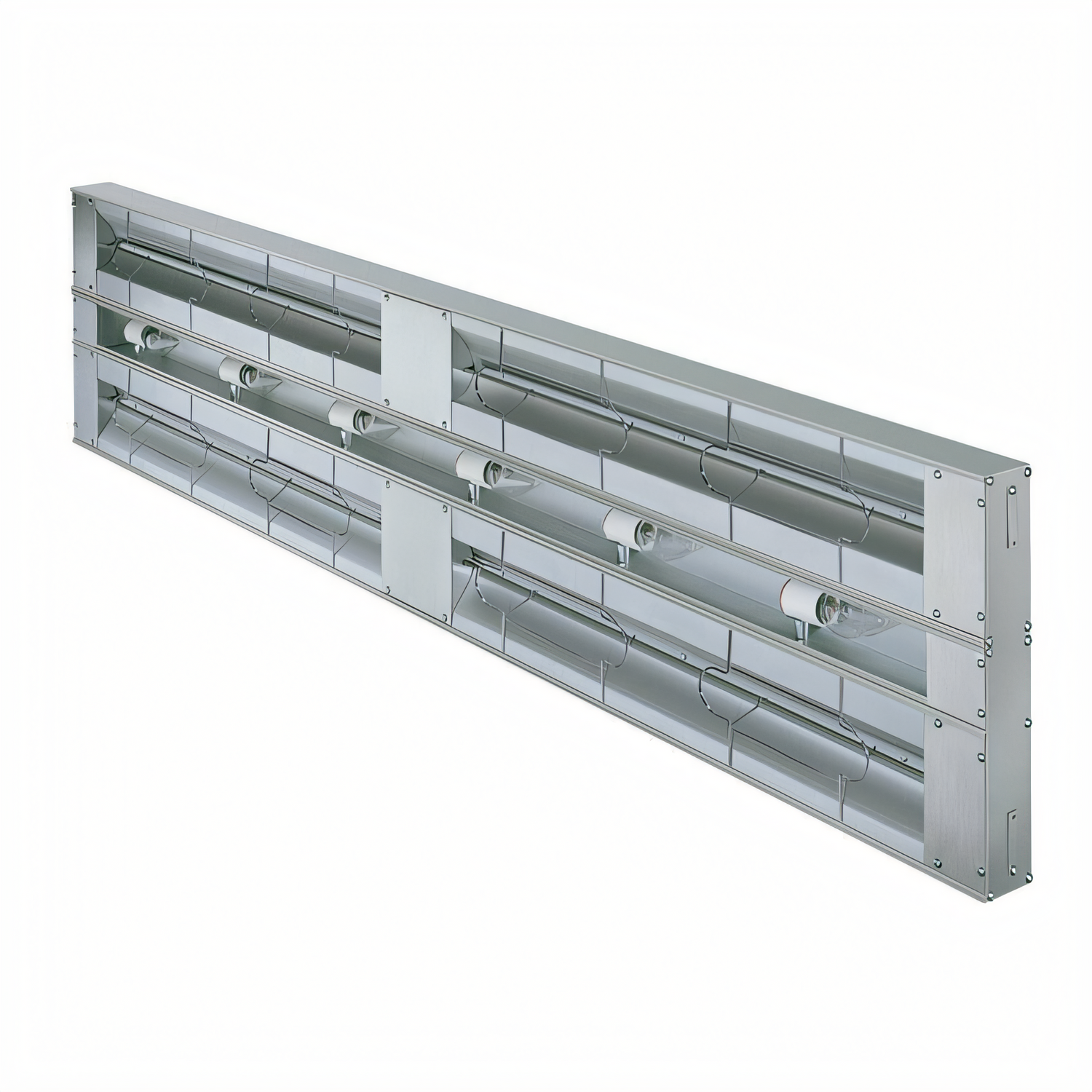

Hatco GRAL-84D3 Glo-Ray® Heat Lamps

Hatco GRAL-84D3 Glo-Ray® Heat Lamps



Regular price $1,588.20
$1,588.20
Sale price
Regular price
Sale Sold out

From $30.18/week with



Need more information? Contact us today!

Hatco GRAL-84D3 Glo-Ray® Heat Lamps

Product Description

Standard-watt 3" (76 mm) spacer 3420 W NSF & cULus Made in USA Stretch your pass-thru window or buffet line an extra seven feet without sacrificing food quality. The Hatco Glo-Ray GRAL-84D combines twin pre-focused infrared heater rods with built-in display lighting to hold fried entrées, plated meals and sheet pans at safe, appetizing temperatures—no cold corners, no dried-out portions.

Key benefits:

  • Provides even, blanket-wide heat distribution thanks to the dual tubular metal sheathed elements.
  • The 3-inch spacer between the heater rods creates a deeper, more forgiving holding zone.
  • Includes seven shatter-resistant incandescent bulbs that illuminate the product and boost impulse sales.
  • The rigid extruded aluminum housing will not sag, even at an 84-inch span.
  • The reinforced wire guard protects the elements without blocking the heat.
  • The heavy-duty thermal insulation reduces heat loss and keeps the work areas cooler.
  • The elements are guaranteed for two years against burnout or breakage.
  • The product is NSF and cULus listed, and it is proudly manufactured in Wisconsin, USA.

What's included:

  • A GRAL-84D strip heater with a 36-inch (914 mm) flexible conduit and 42-inch (1067 mm) leads attached.
  • Seven coated incandescent display lamps.
  • A factory-installed toggle switch to control the heat and lights.
  • Mounting brackets and hardware.
  • An installation and operation manual.

Popular factory options (order with unit):

  • Choose from designer color or gloss housing finishes to customize the appearance.
  • Add a 6-inch (152 mm) heater spacer for extra-deep holding areas.
  • Select remote toggle or infinite control boxes for convenient operation.
  • Opt for integrated acrylic sneeze guards, either one-sided or two-sided, to protect the food.
  • Utilize adjustable or fixed tubular stands for easy countertop service.
  • Upgrade to halogen or Chef-LED bulbs for enhanced lighting.

Product Specs

Specification Value
Overall width 84" (2134 mm)
Housing depth × height 15" D × 2.5" H (381 × 64 mm)
Heater spacing 3" (76 mm)
Total wattage 3420 W (standard-watt model)
Voltage options / amps* 120 V 28.5 A | 208 V 16.4 A | 240 V 14.3 A
Phase Single
Lighting 7 × 40 W coated, shatter-resistant lamps (included)
Construction Anodized aluminum with bright-annealed reflector
Certifications NSF, cULus
Warranty 2-yr element warranty; 1-yr parts & labor

Features

Specification Value
Manufacturer Hatco
Brand Name Glo-Ray®
Certifications NSF, cULus, Made in USA
Height 2.5in
Width 84.0in
Depth 15.0in
Shipping Weight 50.0lbs
Size double
Length 73 - 84"
Type lighted
Finish aluminum
Type of element metal heating rod
Specifications Glo-Ray® Infrared Strip Heater, 84" W, standard wattage with lights, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 3420 watts, NSF, cULus, Made in USA
