Description

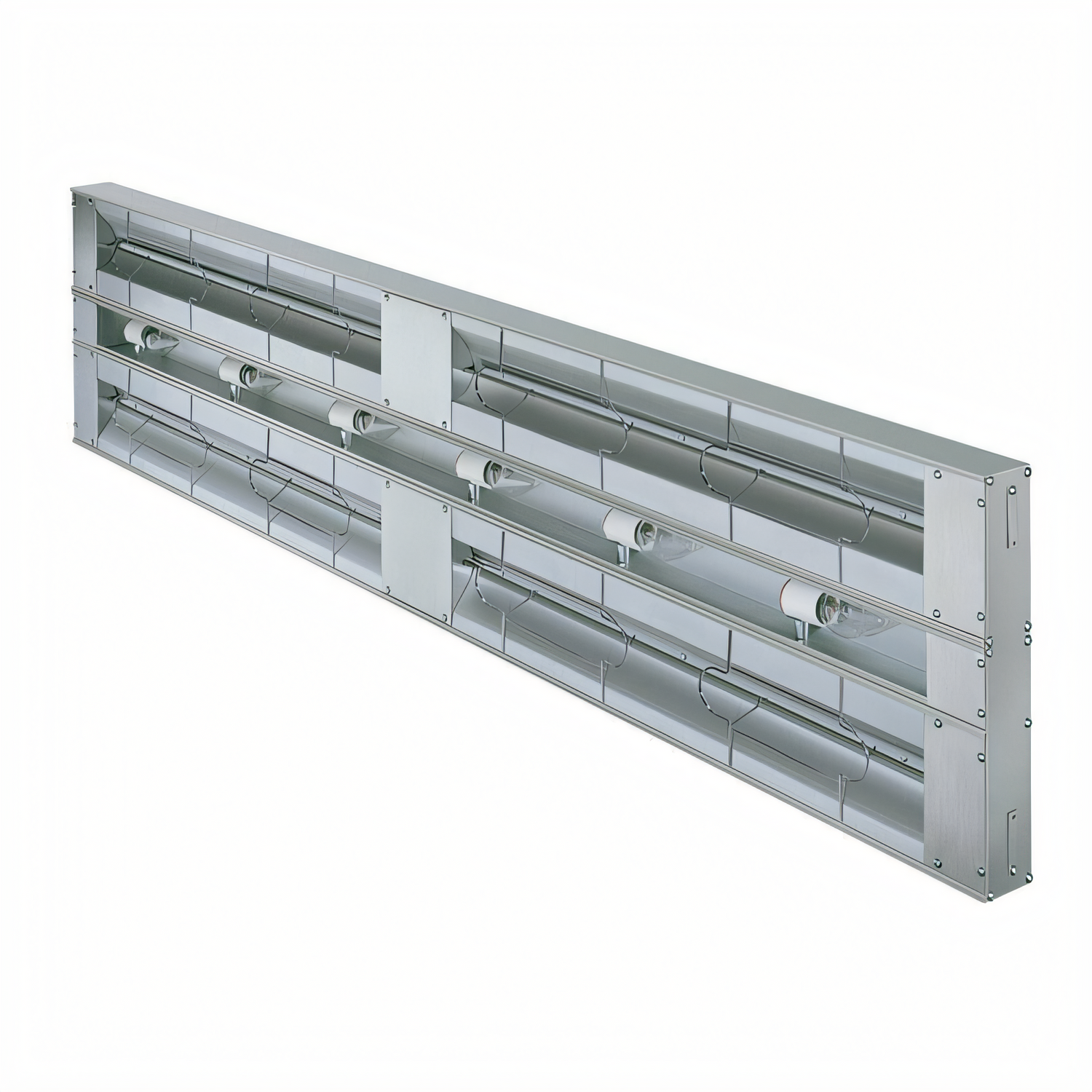

Hatco GRAL-96D6 Glo-Ray® Heat Lamps
Product Description
Standard wattage, 6" (152 mm) rod spacing, and Made in USA. The Hatco Glo-Ray® GRAL-96D keeps an 8-ft serving line hot, appetizing, and brilliantly lit. This NSF-listed strip heater uses two tubular metal sheathed elements and a built-in 6" spacer to evenly blanket deeper food wells with pre-focused infrared heat. Eight shatter-resistant lamps showcase your menu items. Minimum clearance to combustible surfaces is 15" (381 mm) below units with built-in switches, and 18" (457 mm) below units with remote switches. Remote control boxes should always be installed outside the heat zone.
Why you'll love it:
- The even heat distribution across the entire 96" holding surface eliminates "cold spots."
- The 6" spacer between heater rods creates a deeper heat zone for double-pan layouts.
- The dual tubular metal elements are guaranteed for 2 years against burnout and breakage.
- The coated, shatter-resistant incandescent lights both illuminate the food and protect it from glass shards.
- The extruded aluminum housing will not sag, even at 8 ft (2.4 m) long.
- The reinforced wire guard ensures operator safety without blocking the heat.
- The heavy-duty insulation reduces heat loss and keeps the outer surfaces cooler.
- The product is NSF & cULus certified for safe, code-compliant installation.
- It is proudly manufactured in Milwaukee, WI USA.
Popular accessories (ordered with unit):
- Sneeze guards are available in one-sided or two-sided options, with heights of 9.375 inches or 14 inches.
- Remote toggle or infinite switches allow you to control up to 12.2 amps per circuit.
- Tubular stands come in adjustable (10-14 inches) or fixed (10-16 inches) models, suitable for portable buffet use.
- Chef LED replacement bulbs are available in 3000 Kelvin or 4000 Kelvin color temperatures.
- Custom designer colors, gloss or plated finishes, and antimicrobial powder coat options are available.
Product Specs
| Specification | Value |
|---|---|
| Model | GRAL-96D |
| Length | 96" (2438 mm) |
| Overall depth / height | 18" D × 2.5" H (with 6" spacer) |
| Housing material | Clear anodized aluminum (Designer colors & gloss finishes available at time of order) |
| Heat output | 3,930 W • single phase |
| Voltage options | 120/208 V, 120/240 V, 208 V, 240 V (consult electrical diagram for multi-circuit units) |
| Lamp quantity / type | 8 × 40 W coated incandescent display lamps (1 per foot standard) |
| Shipping weight | Approx. 56 lb (24 kg) |
| Certifications | NSF, cULus |
| Country of origin | United States of America |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hatco |
| Brand Name | Glo-Ray® |
| Certifications | NSF, cULus, Made in USA |
| Height | 2.5in |
| Width | 96.0in |
| Depth | 18.0in |
| Shipping Weight | 56.0lbs |
| Finish | aluminum |
| Size | double |
| Type | lighted |
| Type of element | metal heating rod |
| Length | 85 - 96" |
| Specifications | Glo-Ray® Infrared Strip Heater, 96" W, standard wattage with lights, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, 3930 watts, NSF, cULus, Made in USA |
