Description
John Boos PB-DIIB2820CP10-X Bar Equipment
Product Description
Keep drinks flowing and guests refreshed with the PB-DIIB2820-CP10 drop-in ice bin. Featuring rugged 300-series stainless steel construction and an integrated 10-circuit cold plate, this NSF-listed unit chills beverage lines right at the point of dispense. Enjoy less ice melt and faster service for happier customers. All dimensions are typical with a tolerance of ± 0.5 inches, so be sure to verify field measurements before cutting.
Why bartenders love it:
- The 10-inch deep, insulated basin holds up to 77 pounds of ice.

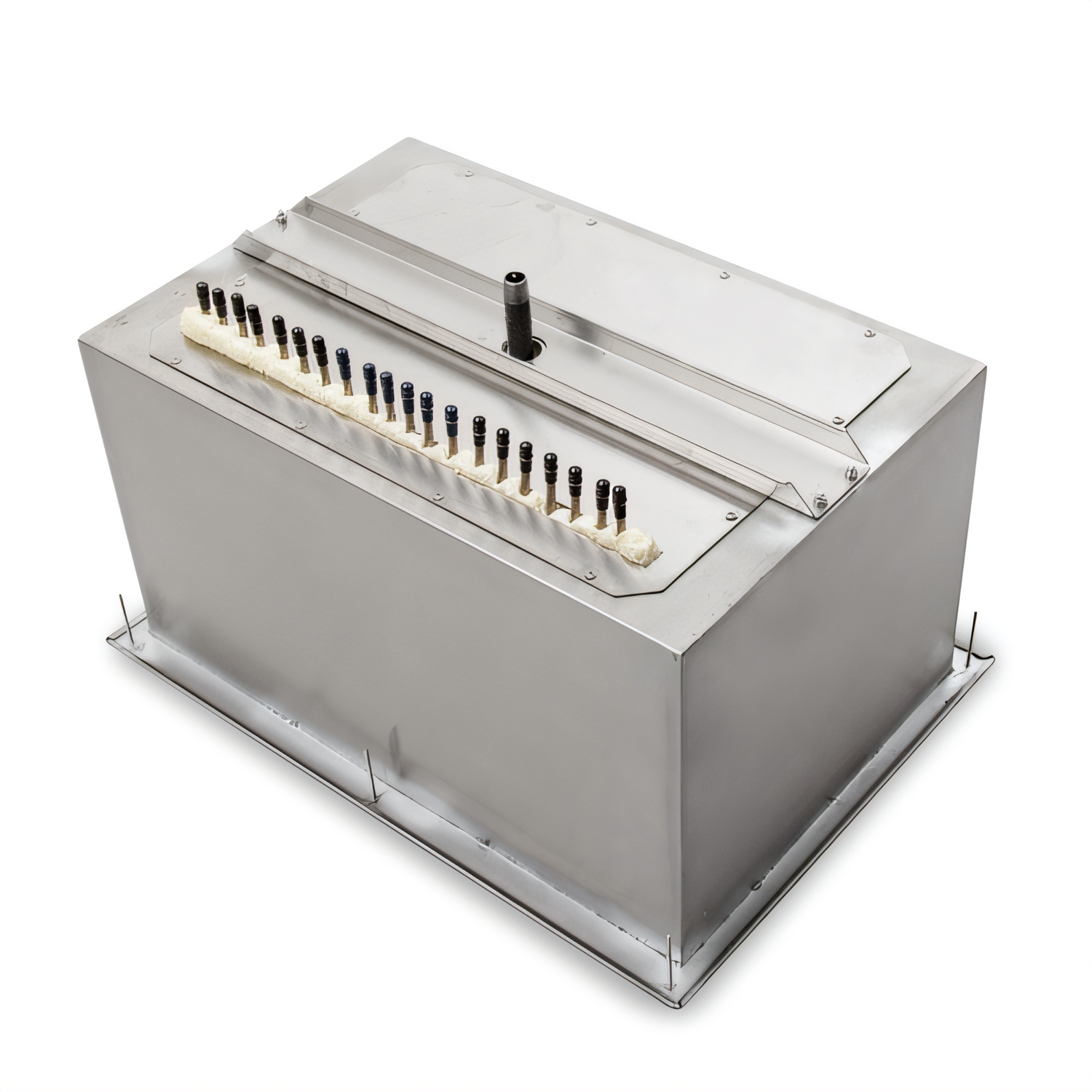

- The 10-circuit aluminum cold plate (with a 1/2-inch x 5-inch MPT nipple) keeps soda, juice, and mixers ice-cold as they're dispensed.

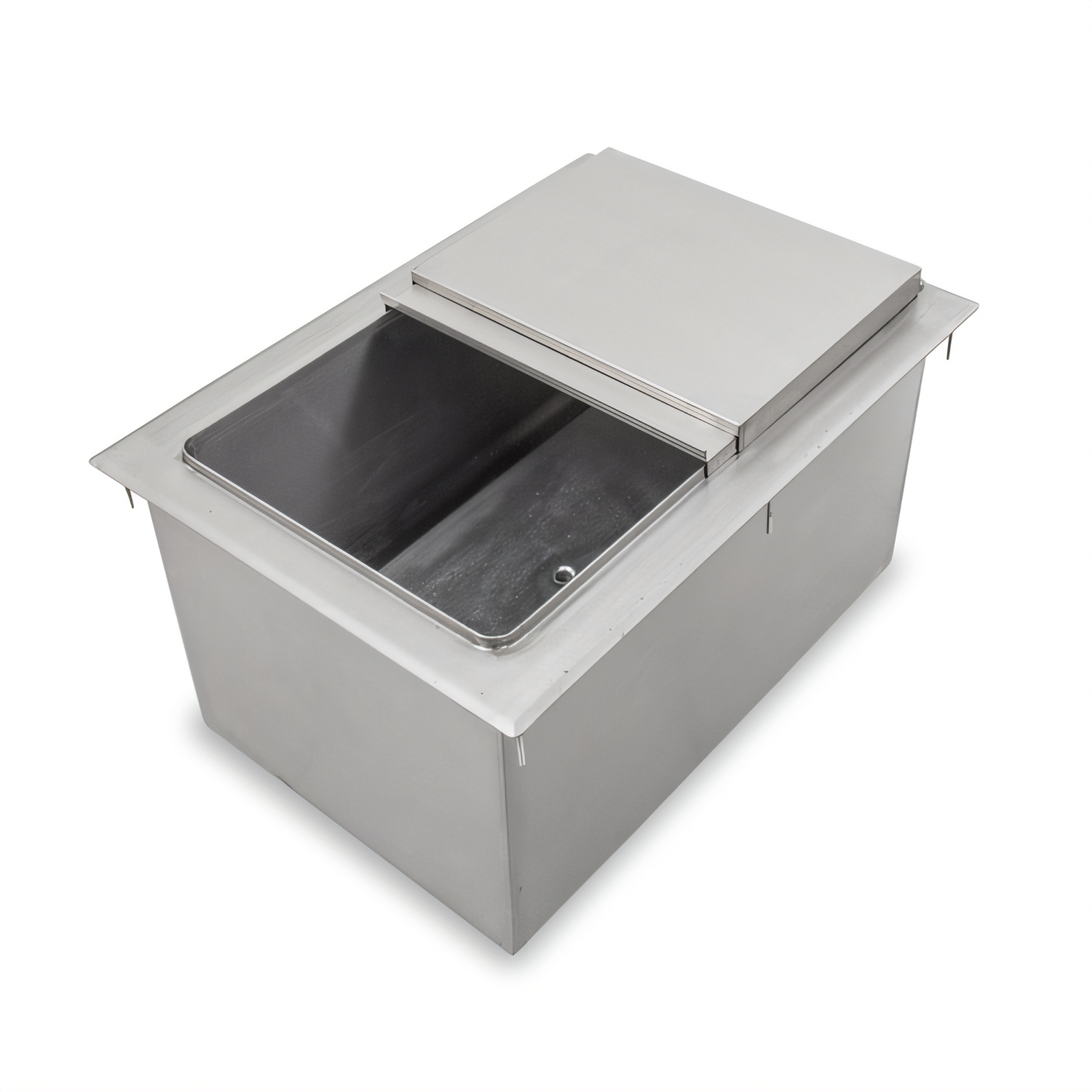

- The removable stainless steel sliding lid protects the ice from airborne contaminants.
- The 1/2-inch threaded drain fitting allows for fast and positive water removal.
- The durable 14-gauge deck and 18-gauge base are made from Type 300 stainless steel, with TIG-welded and polished seams.
- The 1/2-inch raised lip around the bin helps contain spills and drips.
- It ships ready to install from Effingham, IL and Nevada, reducing lead times.
Product Specs
| Specification | Value |
|---|---|
| Model | PB-DIIB2820-CP10 |
| Overall dimensions (L × W × H) | 28 “ × 20 “ × 14-3/16 ” |
| Internal ice bin (L × W × D) | 24 “ × 15 “ × 10 ” |
| Recommended cut-out | 27 “ × 19-1/8 ” |
| Ice capacity | 77 lb |
| Cold plate | 10 circuits, ½ “ × 5 “ MPT nipple outlet |
| Shipping weight | 120 lb (approx.) |
| Certifications | NSF |
| Construction | Deck – 14 ga 300 SSBase – 18 ga 300 SS |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 14.19in |
| Width | 28.0in |
| Depth | 20.0in |
| Shipping Weight | 119.6lbs |
| Cover | sliding cover |
| Material | stainless steel |
| Type | with cold plate |
| Specifications | Ice Bin, drop-in, 28"W x 20"D x 14-3/16"H overall size, 24"W x 15" front-to-back x 10" deep insulated ice bin, 10-circuit cold plate, removable sliding lid, drain, 14/300 stainless steel deck, 18/300 stainless steel base, 27"W x 19-1/8"D cutout recommended (Available in Effingham and Nevada) |
