Description

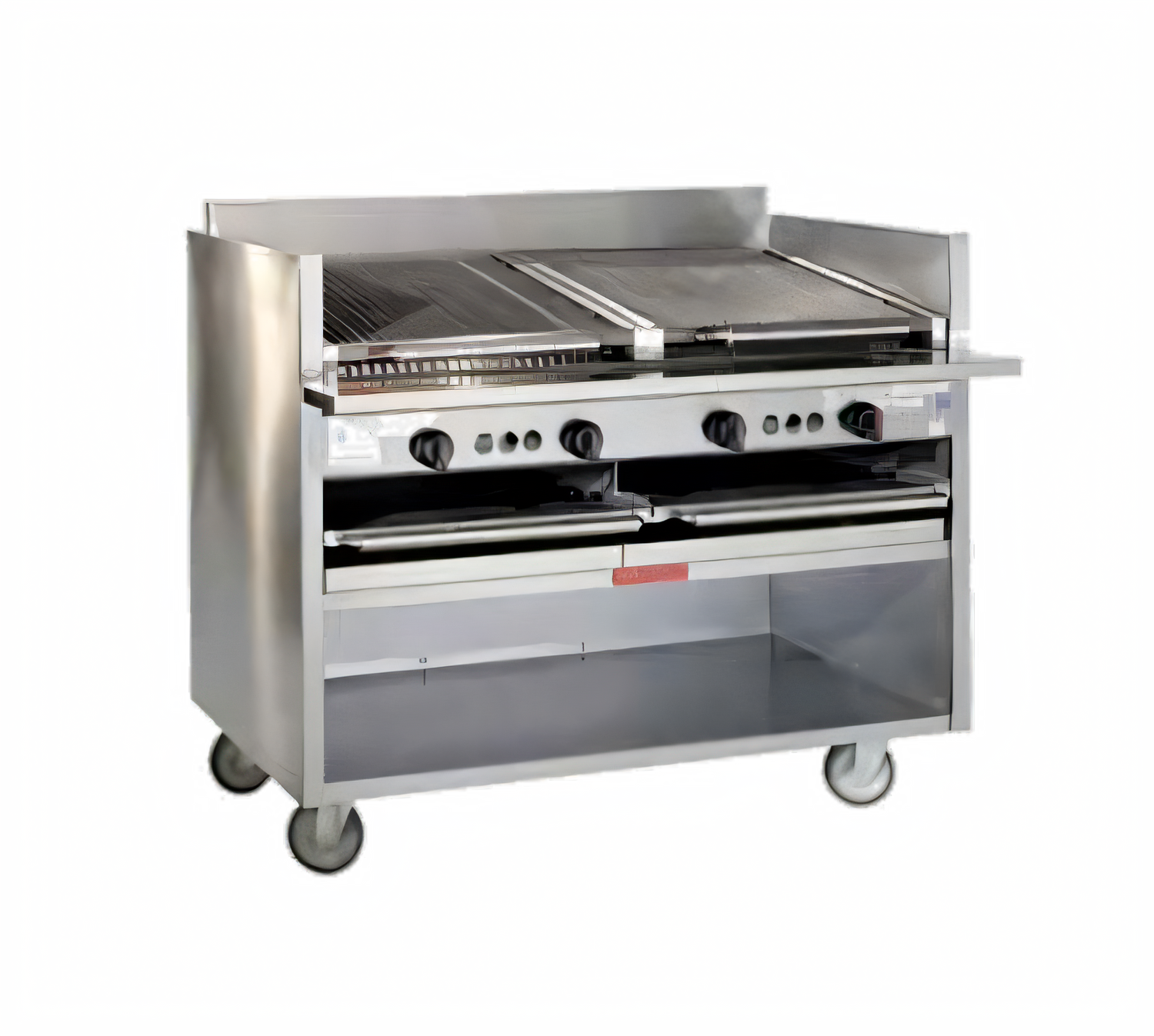

Magikitch'n (Middleby) FM-SMB-660 Gas Charbroilers
Product Description
Elevate your grilling game with the FM-SMB 660 from MagiKitch'n. Featuring a ceramic coal heat source that delivers a sizzling 195,000 BTU/hr, this floor-standing model offers an expansive 1404 in² cooking area to tackle even the busiest dinner rushes. Unlock the signature coal-fired flavor that seals in juices for perfectly seared steaks, burgers, chicken, and seafood. Need even more power? The high-output "-H" version cranks it up to 260,000 BTU/hr for maximum searing performance.
Why you'll love it:
- The ceramic briquettes distribute and hold heat evenly, resulting in consistent, juicy cooking results.
- The free-floating ½" round rod grate expands and contracts without warping, and the E-Z Tilt feature drains grease into the front trough.
- The massive 1404 in² (9,063 cm²) cooking surface is powered by 13 stainless steel burners, allowing for high-volume production.
- The operator-friendly service shelf provides a 6" stainless steel shelf with an integrated utility/towel bar, keeping your tools within easy reach.
- The built-in water tubs add moisture, help control flare-ups, and make clean-up faster.
- The open cabinet base provides handy pan or utensil storage without increasing the overall footprint.
- The standing pilot with a runner tube system ensures reliable lighting and quick recovery.
- The all-stainless exterior, fully insulated double-wall cabinet, and 6" adjustable legs are built to withstand years of commercial use.
- It is certified safe and sanitary, with CSA Flame, CSA Star, and NSF listings.
What's in the box:
- The box contains an FM-SMB 660 ceramic coal charbroiler.
- The charbroiler has a round-rod top grate with a quick-lift handle.
- It includes a top grid scraper.
- The water tubs are already installed.
- The charbroiler comes with a factory-installed 6-inch stainless steel service shelf and utility bar.
- The unit has 6-inch adjustable stainless steel legs.
Installation notes:
- Make sure you have a Type 1 exhaust hood installed. Do not block the rear flue opening.
- Keep a minimum clearance of 30 inches in front, 4 inches from the floor, and 0 inches on the sides and back of the unit.
- Level the unit using the adjustable legs before using it for the first time. Casters are also available as an optional feature.
- Always install the gas regulator that comes with the unit to maintain the proper burner pressure.
Product Specs
| Specification | Value |
|---|---|
| Model | FM-SMB 660 (ceramic coal) |
| Overall dimensions | 60" W × 35-1/2" D × 39-1/2" H (152 × 90 × 100 cm) |
| Cooking surface | 1,404 in² (9,063 cm²) |
| Burners | 13 stainless steel tube burners |
| Gas output | 195,000 BTU/hr (standard) 260,000 BTU/hr (high-output option) |
| Gas type & pressure | Natural 7-10" W.C. / LP 11-13" W.C. |
| Gas connection | 3/4" NPT (single connection) |
| Ship weight | ≈ 900 lb (408 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Magikitch'n (Middleby) |
| Certifications | NSF, CSA Star, CSA Flame |
| Height | 39.5in |
| Width | 60.0in |
| Depth | 35.5in |
| Shipping Weight | 900.0lbs |
| Width (side - side) OA | 49 - 60" |
| Exterior Finish | all stainless steel exterior |
| Grid | adjustable tilt round rod |
| Depth (front - back) | 27" |
| Heat | ceramic briquettes |
| Base | open cabinet base |
| Specifications | Coal Charbroiler, floor model, gas, 60"W x 35-1/2"D x 39-1/2"H overall size, free floating round rod top grate with EZ tilt to front grease trough, ceramic briquettes, standing pilot, 6" service shelf with utility bar, water tubs, open cabinet base, top grid scraper, 6" adjustable legs, CSA Flame, CSA Star, NSF |
