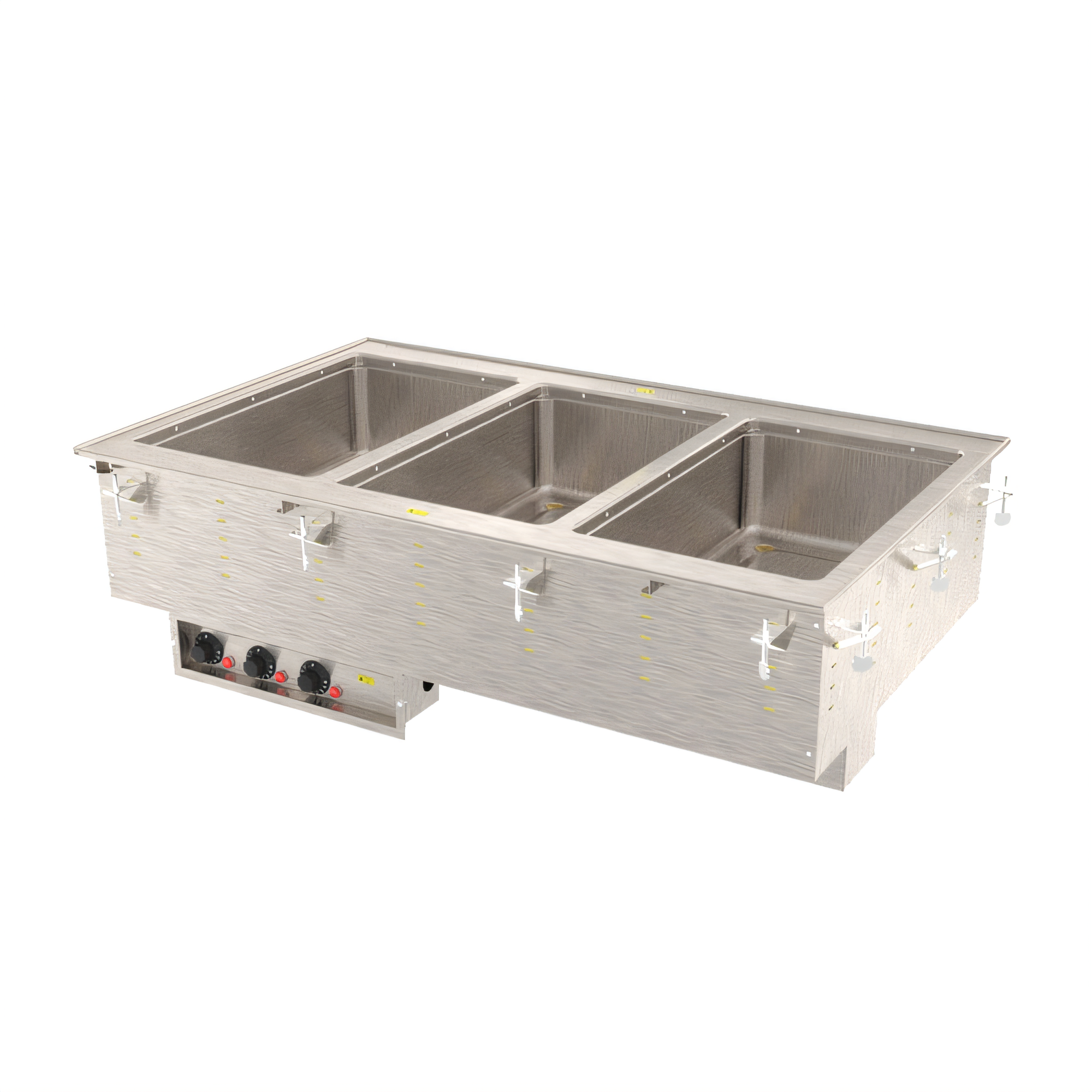

Vollrath 3640580HD Steam Tables & Food Wells

Product Description

Keep every entrée at the perfect serving temperature with this NSF-listed, Made-in-USA drop-in from Vollrath. Three individually controlled, water-bath wells made from durable 316 stainless steel provide reliable holding power in a compact footprint, making it ideal for use in buffets, cafeterias, and concession lines. Each well offers 625 watts of power and a NEMA 6-15P plug for convenient operation.

Key Features & Benefits:

  • The wells are made of 20-gauge/316 marine-grade stainless steel, providing superior corrosion resistance. Each well measures 12" × 20".
  • The auto-fill system automatically maintains the optimal water level, eliminating the need for manual refilling or worrying about "dry wells."
  • The individual thermostatic controls (panel-mounted with a 4 ft tether) allow for precise and independent heat management, with power lights to indicate when the heat is on.
  • The wet-heat design meets NSF 4 performance standards when operated with water, delivering gentle and uniform heat up to 212 °F (100 °C).
  • The 1" copper manifold drain has a master shut-off valve and individual ball valves, enabling fast and mess-free cleanup.
  • The drip-free flange protects counters and simplifies top-mount installation. It includes positioning clips for surfaces up to 3" thick.
  • The unit is fully insulated on all non-exposed sides, including between the wells, for energy efficiency and cooler counter surfaces.
  • The unit can accommodate full-size or fractional pans up to 6" deep (adapter bars are recommended for fractional pans).
  • The zero-clearance design and removable bottom service panels make maintenance and servicing easier.

Product Specs

Specification Value
Overall dimensions 41 ½" W × 26" D × 21 ½" H (105.4 × 66 × 54.6 cm)
Cut-out size 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) – 7/8" corner radius required
Well size / qty. (3) full-size 12" × 20" wells, 6" max pan depth
Wattage / amps 1,875 W total (625 W per well) • 9.0 A
Electrical 208 V, 60 Hz, single-phase • 6 ft cord with NEMA 6-15P plug
Operation Wet heat only (water required)
Construction 18-gauge stainless top • stainless exterior housing
Certifications NSF 4, cULus
Origin & warranty Made in USA • 2-year parts & labor warranty on marine-grade wells Full policy

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, cULus, Made in USA
Height 21.5in
Width 41.5in
Depth 26.0in
Shipping Weight 127.0lbs
Style individual pans
Construction stainless steel construction
Wet or Dry operation wet
Controls thermostatic controls
Insulated or Non-Insulated insulated
Pan Capacity (3) full size (12" x 20")
Drain with drain
Specifications Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 208v/60/1-ph, 9.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
cULus
cULuscULus Certified – This product has been tested and meets the requirements for this certification.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
