Description

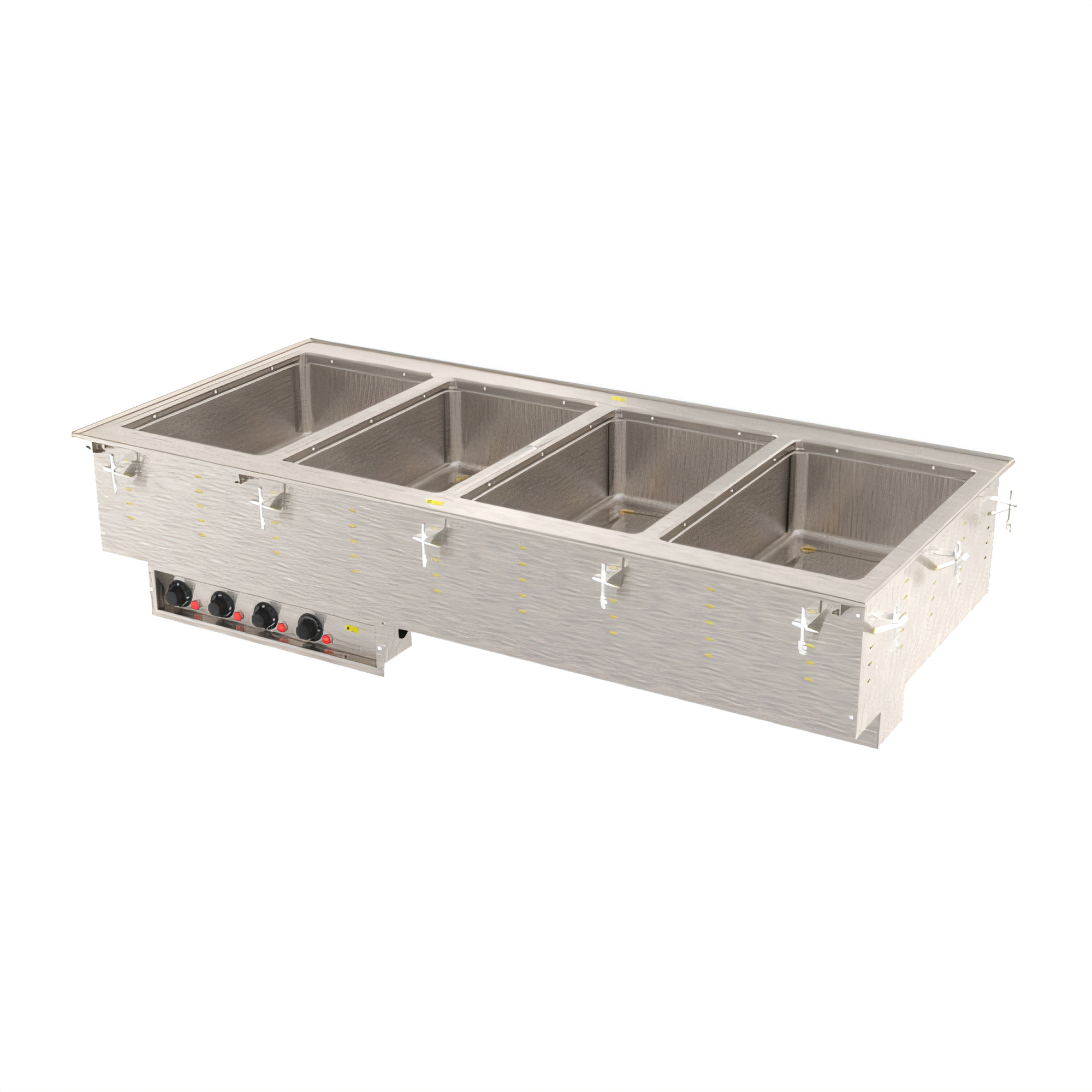

Vollrath 3640751HD Steam Tables & Food Wells
Product Description
This high-performance Vollrath drop-in unit is engineered to withstand the demands of busy commercial kitchens. With a power output of 1000 watts per well and 208-240 volt operation, it maintains safe serving temperatures for four full-size steam table pans. The heavy-duty 316 marine-grade wells, individual infinite controls, and one-inch copper manifold drain make this a durable, service-friendly choice for buffets, cafeterias, cruise ships, and other high-volume foodservice applications.
Why you'll love it:
- The unit features 4 independent 12" × 20" drawn wells, made of 20-gauge, SAE 316 stainless steel for superior corrosion resistance.
- It is designed for wet operation only, ensuring even, NSF-compliant heat distribution.
- The individual infinite controls are located on a tethered stainless-steel panel, with power indicator lights for easy monitoring.
- The 1" copper manifold drain includes individual ball-valve shutoffs and a master shutoff, allowing for fast, drip-free cleanup.
- The unit is fully insulated on all sides, including between the wells, to improve efficiency and protect surrounding cabinetry.
- The 18-gauge stainless top and durable exterior housing are rated for zero-clearance installation.
- It ships with a 6 ft (1.8 m) cord and NEMA 6-30P plug, eliminating the need for hard-wiring.
- Mounting/positioning clips for counters up to 3" (7.6 cm) thick are included.
- The unit can accommodate full-size or fractional pans up to 6" (15.2 cm) deep, with adapter bars recommended for fractional pans.
- The product is NSF & cULus listed and made in the USA.
Product Specs
| Specification | Value |
|---|---|
| Wells | 4 × full-size (12" × 20") marine-grade 316 stainless, 20 ga |
| Operation | Wet only |
| Controls | 4 × infinite dials, remote panel (4 ft / 121.9 cm tether) with indicator lights |
| Total Power | 4,000 W (1,000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-phase, 14.4-16.7 A, 6 ft cord with NEMA 6-30P |
| Drain | 1" copper manifold, individual well shutoffs + master shutoff |
| Overall Dimensions | 54 3⁄4" W × 26" D × 21 1⁄2" H (139.1 × 66 × 54.6 cm) |
| Counter Cutout | 54" W × 25 1⁄4" D (137.2 × 64.1 cm) – 7⁄8" (2.2 cm) corner radius required |
| Pan Capacity | Up to 6" (15.2 cm) deep |
| Construction | 18-ga stainless top, stainless exterior housing, fully insulated |
| Certifications | NSF 4 (wet), cULus, Made in USA |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 54.75in |
| Depth | 26.0in |
| Shipping Weight | 180.0lbs |
| Controls | infinite controls |
| Construction | stainless steel construction |
| Style | individual pans |
| Pan Capacity | (4) full size (12" x 20") |
| Drain | with drain |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
