Description

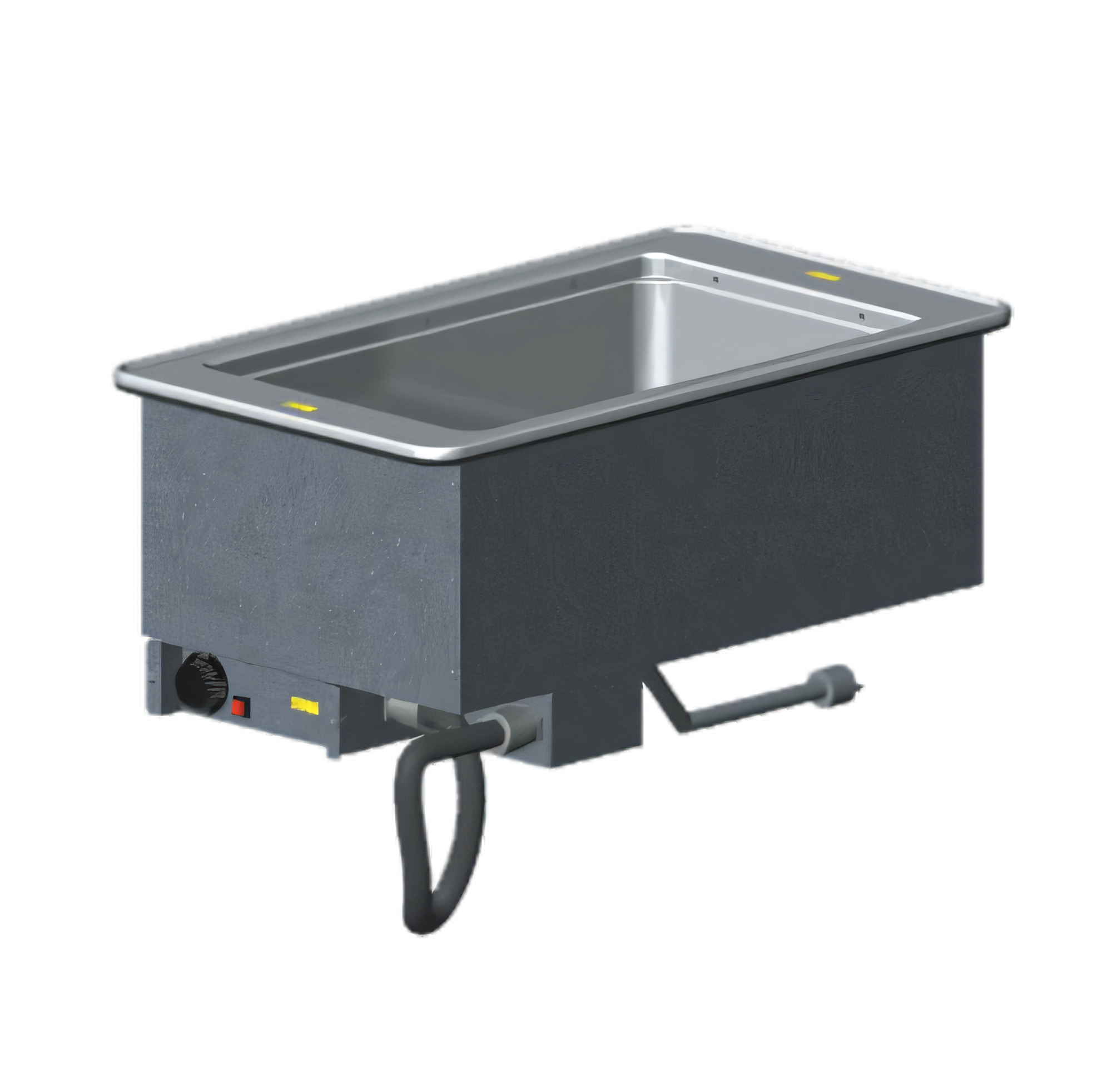

Vollrath 3646661 Steam Tables & Food Wells
Product Description
Model 3646661 is a 12" x 20" stainless steel well that operates on 120V with a NEMA 5-15P plug. It is NSF and cULus listed, and made in the USA. This Vollrath modular drop-in unit creates a seamless, sanitary hot-food holding station for any counter. The deep-drawn stainless steel well and automatic water-fill system provide consistent, moist heat, while the full-perimeter drip edge contains spills for a cleaner service line.
Features:
- The water level is automatically controlled, maintaining the perfect steam level and reducing labor.
- The temperature can be precisely adjusted with an infinite control and power indicator light.
- The unit is made with premium construction, including an 18-gauge stainless steel top, 20-gauge stainless steel well, and 18-gauge galvanized housing.
- It has a 1-inch copper manifold drain with individual well shut-off and a master manifold shut-off, allowing for easy drainage.
- The full-perimeter drip-edge flange keeps condensation and spills off the counter.
- High-density glass-fiber insulation on all sides allows for safe zero-clearance installation.
- It can accommodate full-size or fractional pans up to 6 inches (15.2 cm) deep.
- The unit comes ready to use with a 6-foot (1.8 m) cord and NEMA 5-15P plug, requiring no hard-wiring.
- Positioning and mounting clips are included for counters up to 3 inches (7.6 cm) thick.
Product Specs
| Specification | Value |
|---|---|
| Item number | 3646661 |
| Type | Single well, drop-in, wet operation only |
| Well size (interior) | 12" W x 20" D; 20 ga stainless steel |
| Overall dimensions | 15" W x 26" D x 21 1⁄2" H (38 x 66 x 54.5 cm) |
| Counter cut-out | 14 1⁄4" W x 25 1⁄4" D; 7⁄8" corner radius required |
| Control type | Infinite knob, remote stainless panel (3' tether) |
| Heating output | 1000 W |
| Electrical | 120 V / 60 Hz / 1-ph, 8.3 A, cord & NEMA 5-15P plug |
| Drain system | 1" copper manifold drain with individual and master shut-offs; auto-fill included (requires separate 120 V service) |
| Certifications | NSF 4 (wet), cULus |
| Country of origin | USA |
| Warranty | 1-year parts & labor (see vollrathfoodservice.com for full policy) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, cULus, Made in USA |
| Height | 21.5in |
| Width | 15.0in |
| Depth | 26.0in |
| Shipping Weight | 43.6lbs |
| Controls | infinite controls |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Pan Capacity | (1) full size (12" x 20") |
| Wet or Dry operation | wet |
| Style | individual pans |
| Insulated or Non-Insulated | insulated |
| Drain | with drain |
| Specifications | Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, infinite control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 120v/60/1-ph, 8.3 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy) |
