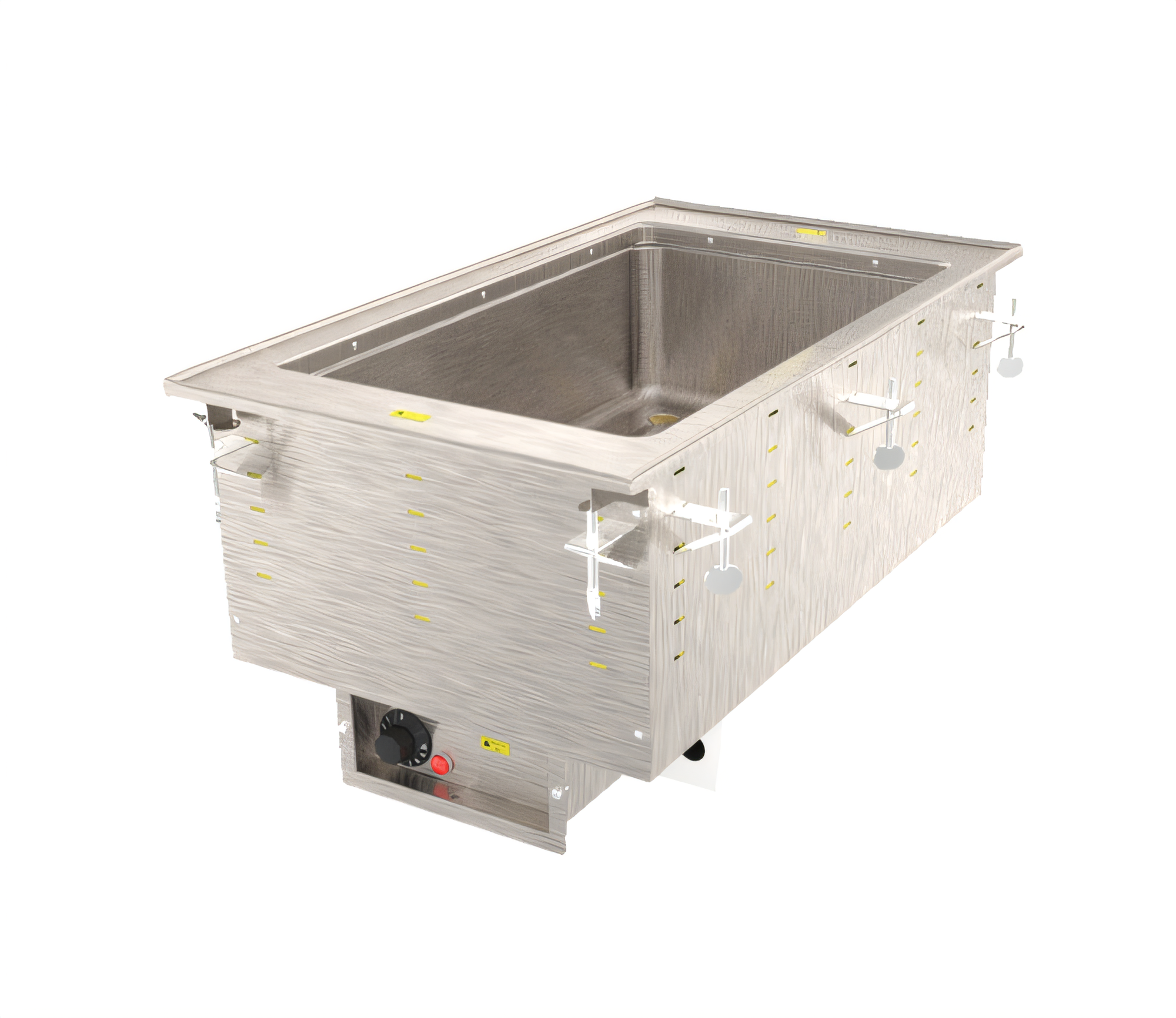

Vollrath 36466HD Steam Tables & Food Wells

Product Description

Model 36466HD | fits one 12" × 20" full-size pan Hold soups, sauces, and sides at perfect serving temperature with the durability you expect from Vollrath. This plug-and-play drop-in features a corrosion-resistant 316 stainless steel well and an easy, remote infinite control so you can install it quickly and focus on food quality. Add the Vollrath sheet-pan adapter #19186 (sold separately) to accommodate sheet pans.

Why choose this hot well:

  • The marine-grade 316 stainless steel construction of the well resists damage from acidic foods and harsh cleaning products.
  • The wet-heat design provides even, gentle warming, ensuring safer food holding.
  • The full-perimeter, drip-free flange prevents condensation and spills from reaching the counter.
  • The 1/2" NPT drain with ball-valve shut-off makes daily cleaning quick and sanitary.
  • The remote stainless-steel control panel, with an infinite dial and power light, allows for easy fingertip temperature adjustments (4 ft tether).
  • The fully insulated design on all sides ensures energy-efficient performance.
  • The well comes with a mounting gasket and clips for counters up to 3" thick, eliminating the need for hard-wiring.
  • This product is made in the USA and is cULus & NSF 4 listed, providing peace of mind.

Installation & use:

  • The unit can be installed in tight spaces, such as buffet lines and custom counters, without requiring any clearance around it.
  • This unit is designed for indoor use only and requires a room with temperature-controlled HVAC for optimal performance.
  • The unit must be operated with water in the well to ensure even heating.

Product Specs

Specification Value
Pan capacity (1) full-size 12" × 20" steam-table pan; accepts fractional pans up to 6" deep
Operation Wet heat only
Control type Infinite knob with power indicator light (remote, tethered)
Well material 20 ga 316 marine-grade stainless steel, fully insulated
Top flange 18 ga stainless steel, drip-free design
Drain ½" NPT with ball-valve shut-off
Overall dimensions 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm)
Counter cut-out 14¼" W × 25¼" D (36.2 × 64.1 cm) with 7⁄8" (2.2 cm) corner radius
Electrical 625 W | 120 V / 60 Hz / 1-ph | 5.2 A | 6' cord, NEMA 5-15P
Certifications NSF 4 (wet), cULus
Country of origin Made in USA
Warranty 2-year limited parts & labor (see VollrathFoodservice.com for details)

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, cULus, Made in USA
Height 15.0in
Width 15.0in
Depth 26.0in
Shipping Weight 33.5lbs
Pan Capacity (1) full size (12" x 20")
Wet or Dry operation wet
Controls infinite controls
Style individual pans
Construction stainless steel construction
Insulated or Non-Insulated insulated
Drain with drain
Specifications Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 120v/60/1-ph, 5.2 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
cULus
cULuscULus Certified – This product has been tested and meets the requirements for this certification.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
