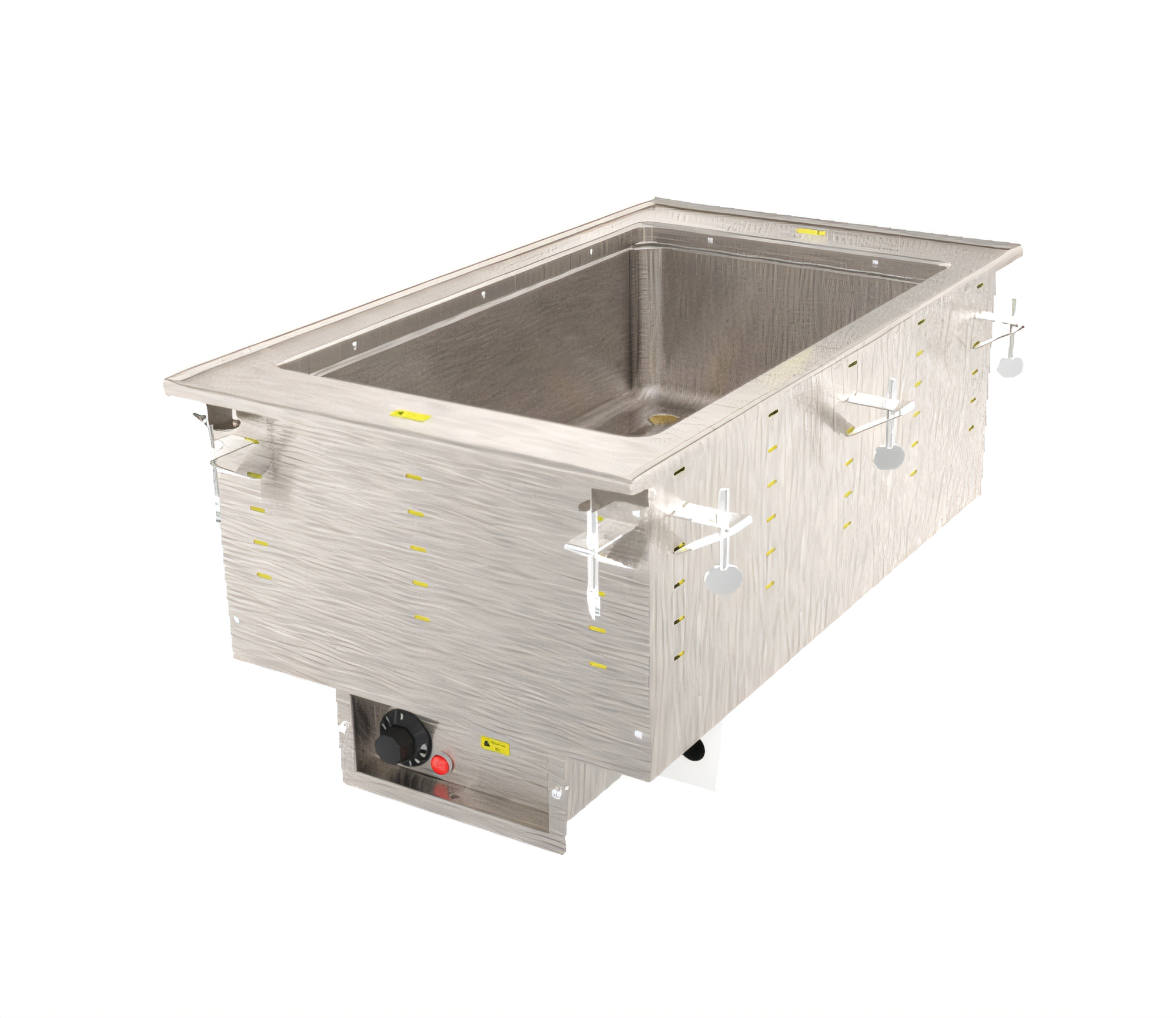

Vollrath 3647180HD Steam Tables & Food Wells

Product Description

The Vollrath 3647180HD is designed for high-volume commercial kitchens, keeping entrées, sides, and sauces at safe, ready-to-serve temperatures in a compact, easy-to-install drop-in format. With a 12" x 20" insulated well, thermostatic control, and a manifold drain, this unit is NSF and cULus certified, allowing you to simply set it into the cut-out, plug it in, and let the auto-fill system handle the rest.

Key benefits:

  • The product is made of 316 marine-grade stainless steel, which resists corrosion from salt, chlorides, and acidic foods.
  • Thermostatic control with a power indicator light provides precise, worry-free temperature holding.
  • The auto-fill feature maintains the ideal water level, ensuring even and consistent heat distribution.
  • The 1" copper manifold drain includes individual well shut-offs and a master shut-off, allowing for fast and mess-free draining.
  • The drip-free flange and full insulation keep the surrounding countertops clean and cool.
  • The zero-clearance, top-mount installation requires no hard-wiring and includes mounting clips.
  • The product can accommodate full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
  • The removable bottom service panel and 4' tethered control panel simplify maintenance.
  • The product is NSF-4 certified for wet operation and is proudly made in the USA.

Product Specs

Specification Value
Model / SKU 3647180HD
Pan capacity (1) 12" × 20" full-size pan, up to 6" deep
Operation Wet heat only, auto-fill
Control type Thermostatic with power indicator light
Heat output 625 watts
Electrical 240 V / 60 Hz / 1-ph, 2.6 A | 6' cord, NEMA 6-15P
Well construction 20 ga 316 marine-grade stainless steel, fully insulated
Top / housing 18 ga stainless steel top & exterior
Drain 1" copper manifold with individual shut-offs & master shut-off
Overall dimensions 15" W × 26" D × 21 ½" H
Cut-out size 14 ¼" W × 25 ¼" D (7 / 8" corner radius required)
Agency listings NSF, cULus
Country of origin USA
Warranty 2-year parts & labor (see full policy)

Features

Specification Value
Manufacturer Vollrath
Certifications NSF, cULus, Made in USA
Height 21.5in
Width 15.0in
Depth 26.0in
Shipping Weight 33.65lbs
Pan Capacity (1) full size (12" x 20")
Style individual pans
Drain with drain
Controls thermostatic controls
Wet or Dry operation wet
Construction stainless steel construction
Insulated or Non-Insulated insulated
Specifications Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
cULus
cULuscULus Certified – This product has been tested and meets the requirements for this certification.
Made in USA
Made in USAMade in USA – This product is manufactured in the United States of America.
