Description

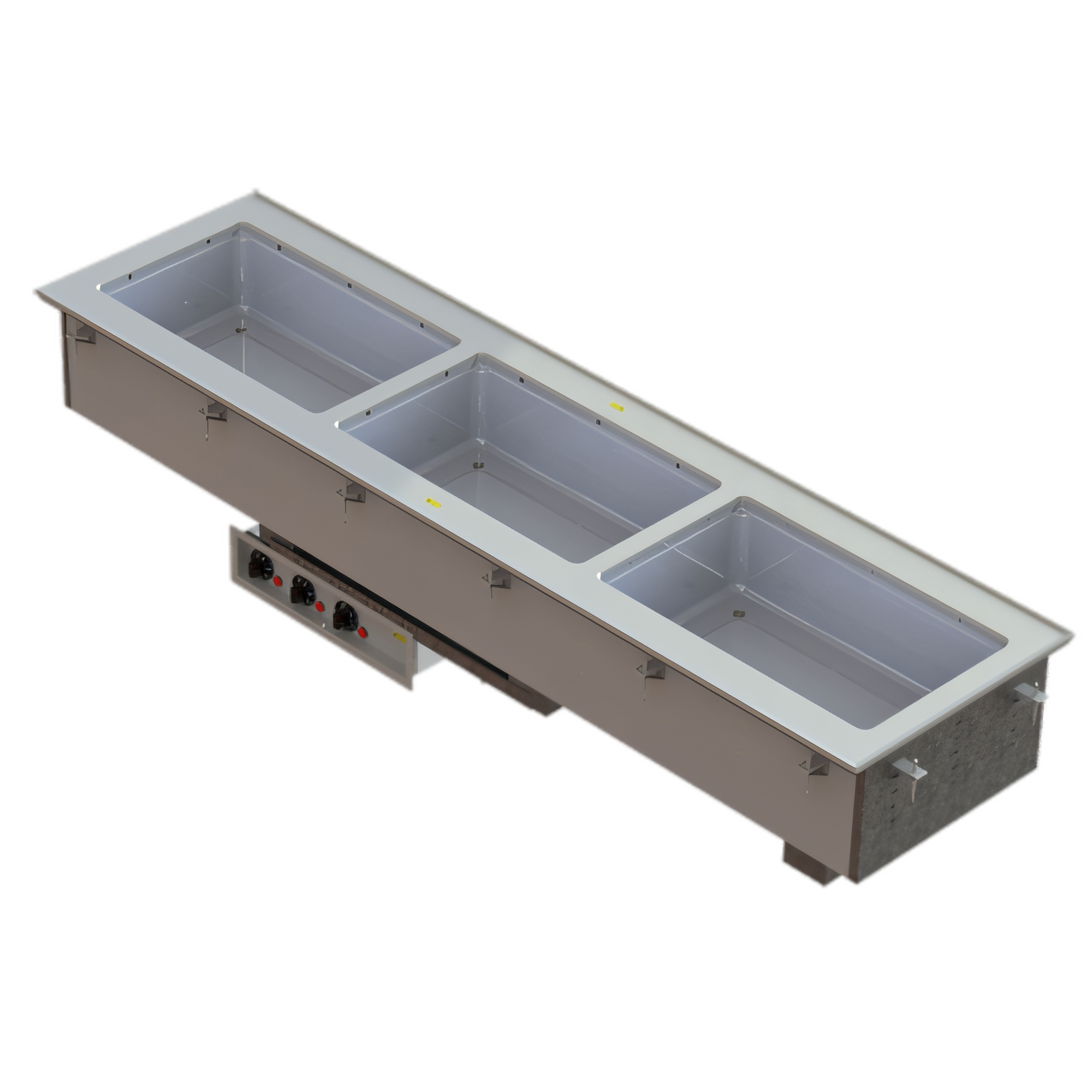

Vollrath 3664620HD Steam Tables & Food Wells
Product Description
The Vollrath Short-Side Hot Drop-In is an ideal solution for narrow buffets and cook-serve lines. Crafted with heavy-duty 316 stainless steel, this model features individual thermostatic controls and a 1-inch manifold drain, ensuring simple, sanitary, and reliable daily operation. Adapter bars are recommended when using fractional pans. For more details on warranty and coverage, please contact us.
Key features:
- The side-rotated wells create an 18-inch depth, which is suitable for tight counter spaces and provides better access for guests.
- The drawn wells and 18-gauge top are made of 316 marine-grade stainless steel, ensuring maximum corrosion resistance.
- The remote stainless steel control panel (with a 4-foot tether) has individual thermostatic dials and power lights.
- The 1-inch copper manifold drain has a master shut-off valve, and a 1/2-inch plug is included for quick water removal.
- The full-perimeter drip edge, along with the included gasket, helps keep the counters dry.
- Thick polyurethane foam insulation on all sides, including between the wells, boosts the unit's energy efficiency.
- Zero-clearance installation is possible, and mounting clips for counters up to 3 inches thick are included.
- The unit comes with a 6-foot cord and a NEMA 6-15P plug, so no hard-wiring is required.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 2 full-size steam table pans (sideways) • accepts fractional pans with adapter bars |
| Controls | Individual thermostatic controls on remote panel with power indicators |
| Heating requirement | Wet operation (water) required for even, NSF-compliant holding |
| Electrical | 208-240 V / 60 Hz / 1-ph • 2000 W • 7.2 – 8.3 A • NEMA 6-15P |
| Drain | 1″ copper manifold drain with ball-valve shut-off; ½″ drain plug included |
| Well size (each) | 20″ L × 12″ W • fits pans up to 6″ deep |
| Overall dimensions | 45-1/2″ L × 18″ W |
| Counter cut-out | 44-11/16″ L × 17-1/4″ W • 7/8″ corner radius |
| Construction | 316 stainless steel wells & top, stainless exterior housing, foam insulation |
| Certifications | UL, CUL, NSF |
| Warranty | 2-year limited warranty (refer to VollrathFoodservice.com for details) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Vollrath |
| Certifications | NSF, UL, Made in USA |
| Height | 21.5in |
| Width | 45.44in |
| Depth | 18.0in |
| Shipping Weight | 138.0lbs |
| Style | individual pans |
| Controls | thermostatic controls |
| Drain | with drain |
| Construction | stainless steel construction |
| Pan Capacity | (2) full size (12" x 20") |
| Wet or Dry operation | wet |
| Insulated or Non-Insulated | insulated |
| Specifications | Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy) |
